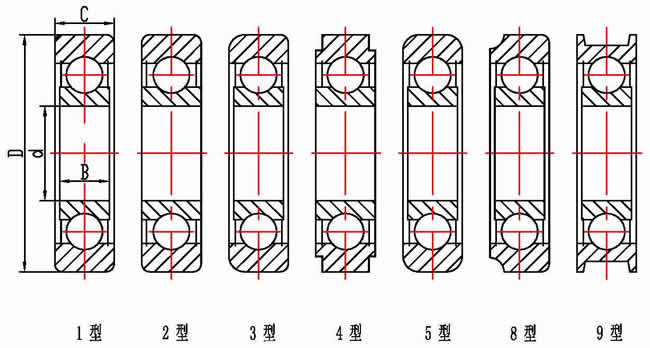

导轨轴承结构简图
导轨轴承外形尺寸
| 轴承型号 Bearing No. | 类型 | 尺寸 Dimension（mm） | ||||||
| Ⅰ | Ⅱ | Ⅲ | Ⅳ | Type | d | D | C | B |
| 205SZZ-29 | 2 | 25.4 | 57.15 | 18.12 | 14 | |||
| 206SZZ-16 | MG206-2RS-1 | 1 | 30 | 76.2 | 28.58 | 16 | ||
| MG206FFA | 8 | 30 | 81.28 | 25.4 | 19.59 | |||
| HG206MZZ-1 | MG206FFH | 3 | 30 | 79.38 | 28.58 | 16.59 | ||
| MG206FFU | 3 | 30 | 81 | 29 | 16.59 | |||
| MG206FFUB | 3 | 30 | 82 | 29 | 16.59 | |||
| MG206FFP | 3 | 30 | 88 | 29 | 16.59 | |||
| MG206FFUA | 3 | 30 | 81.5 | 29 | 16.59 | |||
| 206MZZ | 3 | 30 | 86.36 | 28.58 | 16.59 | |||
| 207SZZ-20 | 4 | 35 | 70.36 | 17 | 17 | |||
| 207MZZ-1 | MG207FFA | X485RS | 1 | 35 | 81.86 | 27.1 | 17 | |
| MG207FFB | 1 | 35 | 88.39 | 31.88 | 17 | |||
| MG207FFR | 2 | 35 | 88.39 | 31.75 | 17 | |||
| 208SZZ-9 | 3 | 35 | 101.75 | 30.16 | 21 | |||
| MG208FFA | 8 | 40 | 100.84 | 25.4 | 19.59 | |||
| MG208FFH | 3 | 40 | 95 | 28.58 | 21 | |||
| MG208FFR | 3 | 40 | 101.35 | 28.58 | 20 | |||
| MG208FFK | 3 | 40 | 101.35 | 28.58 | 21 | |||
| 209MZZ-1 | MG209DD | 1 | 45 | 100.96 | 28.47 | 19 | ||
| MG209TLF | 9 | 40 | 123 | 36 | 19 | |||
| MG209TLF/2 | 3 | 40 | 109 | 30 | 23 | |||
| MG209TLF/3 | 9 | 40 | 108 | 36 | 19 | |||
| 210MZZ-1 | 2 | 50.8 | 103.28 | 32.54 | 32.54 | |||
| 210SZZ-2 | 1 | 101.09 | 27 | 27 | ||||
| 305SZZ-3 | MG305DD | MG305-2RS-1 | X421RS | 3 | 25 | 76.2 | 25.4 | 17 |
| 305SZZ-7 | MG206-2RS-3 | 3 | 25 | 76.35 | 24.77 | 26 | ||
| 305SZZ-6 | MG305DDA | MG305-2RS-2 | 3 | 25.4 | 74.6 | 25.4 | 17 | |
| MG305TLF | 1 | 25 | 74 | 25 | 17 | |||
| MG306DDB | 3 | 30 | 82.55 | 26.98 | 19 | |||
| 306SZZ-5 | MG306DD | MG306-2RS-1 | X555RS | 3 | 30 | 88.9 | 25.4 | 19 |
| 307SZZ-9 | MG307FFK | X549RS | 3 | 35 | 94.62 | 25.4 | 21 | |
| 307SZZ-14 | MG307-2RS-5 | 3 | 35 | 101.35 | 28.58 | 21 | ||
| 307MZZ-2 | MG307FFE | 8 | 35 | 101.35 | 28.58 | 21 | ||
| 308SZZ-8 | 1 | 35 | 100.76 | 36.51 | 21 | |||
| MG307FFB | 2 | 35 | 100.09 | 31.75 | 21 | |||
| MG307FF | 3 | 35 | 101.35 | 28.58 | 21 | |||
| 307SZZ-10 | MG307FFH | MG307-2RS-1 | X376RS | 3 | 35 | 101.35 | 28.58 | 21 |
| 307SZZ-16 | 3 | 35 | 101.35 | 28.58 | 21 | |||
| 307SZZ-18 | MG307-2RS-4 | 3 | 35 | 101.35 | 28.58 | 21 | ||
| 307MZZ-4 | MG307FFA | MG307-2RS-3 | 3 | 35 | 101.6 | 28.58 | 21 | |
| 307SZZ-4 | MG307FF4 | 3 | 35 | 101.6 | 30.16 | 21 | ||
| MG307FFM | 5 | 35 | 101.35 | 28.58 | 21 | |||
| MG307FFP | 5 | 35 | 101.33 | 28.45 | 21 | |||
| 308SZZ-4 | 9 | 40 | 100.08 | 25.58 | 23 | |||
| 308SZZ-5 | MG308FFA | MG308-2RS-1 | 3 | 40 | 113.94 | 31.75 | 23 | |
| 308SZZ-6 | MG308FFE | 3 | 40 | 114.2 | 28.19 | 23 | ||
| MG308FFH | 3 | 40 | 101.6 | 28.58 | 23 | |||
| MG308FFAD | 1 | 40 | 110.7 | 31 | 23 | |||
| MG308FFAB | 5 | 40 | 108.6 | 31 | 23 | |||
| MG308TLF | 5 | 40 | 115 | 30 | 24 | |||
| MG308TISP3 | 3 | 40 | 101.35 | 28.58 | 21 | |||
| MG308TISP4 | 3 | 40 | 101.98 | 28.58 | 21 | |||
| 309SZZ-4 | MG309DDA | MG309-2RS-1 | X501RS | 3 | 45 | 127.06 | 31.75 | 25 |
| 309SZZ-5 | MG309-2RS-3 | 3 | 45 | 127.06 | 31.75 | 27 | ||
| 309SZZ-9 | 3 | 45 | 127.06 | 31.75 | 25 | |||
| 309SZZ-1 | MG309-2RS-2 | 5 | 45 | 128.22 | 31.75 | 25 | ||
| MG309XX1 | 5 | 45 | 114 | 35 | 25 | |||
| MG309XX2 | 5 | 45 | 115 | 35 | 25 | |||
| MG309DD | 5 | 45 | 128.22 | 31.75 | 25 | |||
| MG309DDB | 5 | 45 | 127.06 | 31.75 | 25 | |||
| MG39-3 | 3 | 45 | 115 | 35 | 25 | |||
| MG39-4 | 3 | 45 | 117 | 40 | 25 | |||
| MG39-5 | 1 | 45 | 119.72 | 29 | 25 | |||
| MG39-6 | 3 | 45 | 123.5 | 34 | 25 | |||
| 311SZZ-1 | MG311-2RS-1 | 3 | 55 | 152.48 | 38.1 | 29 | ||
| 311SZZ-3 | 3 | 55 | 152.48 | 38.1 | 29 | |||
| 311SZZ-2 | 3 | 55 | 164.29 | 38.1 | 29 | |||
| MG311FFA | 3 | 55 | 159.89 | 38.1 | 29 | |||
本表仅列出主要尺寸，订货请确认图纸。
